适用范围 Application Scope：

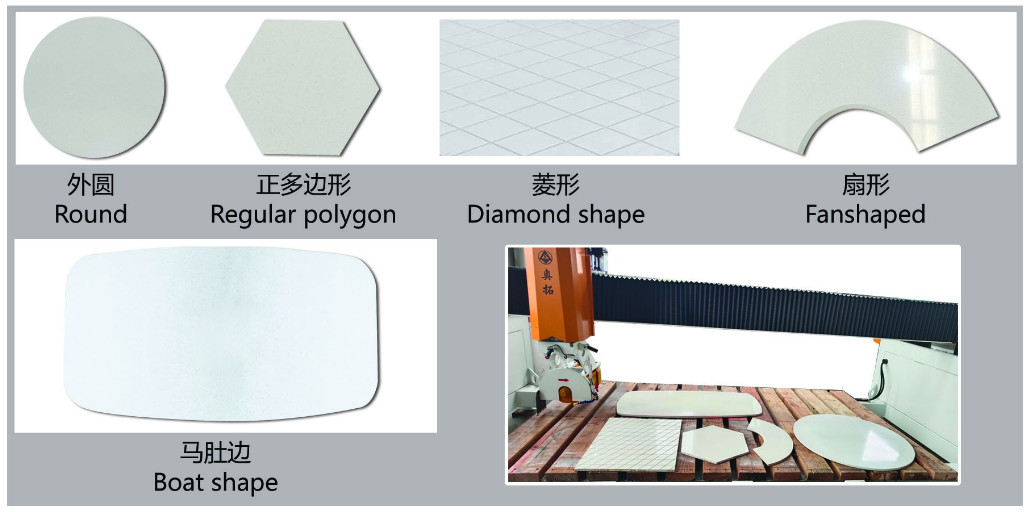

适用于人造石、石英石、大理石、花岗岩、岩板各种石材，陶瓷等建材在不同领域（室内外墙面、地面、台面、柜体等）的深加工，集直线切割、异形切割等多功能为一体。
Suitable for artificial stone, quartz stone, marble, granite, rock plate stone, ceramic and other building materials in different fields (indoor and external wall, ground, table, cabinet , etc.) deep processing, set straight cutting, special-shaped cutting and other functions as one.
技术参数 Technical Parameter
|
机型 Model
|
QC3218-4A
|
|
外形尺寸Overall dimensions
|
L5400mm*W2700mm*H2600mm
|
|
加工尺寸Processing size
|
3200*1800*50mm
|
|
锯片直径 Diameter of Blade
|
Φ350
|
|
工作台垂直翻板角度
Table dimension degree
|
0—80°
|
|
主电机功率 Main motor power
|
15KW
|
|
总功率Total power
|
20kw
|
|
总重量Weight
|
3.5T
|
|
机头旋转角度 Head tilting degree
|
360°
|
|
耗水量 Water consumption
|
3m³/h
|
设备优势 Advantages
* 优化排版一键操作（可以导入完整的CAD图纸），省时省工省力
Optimized layout one-click operation (can import complete CAD drawings), save time, labor and effort
* 15KW主电机，功率大，切割速度快
15KW main motor, large power, fast cutting speed

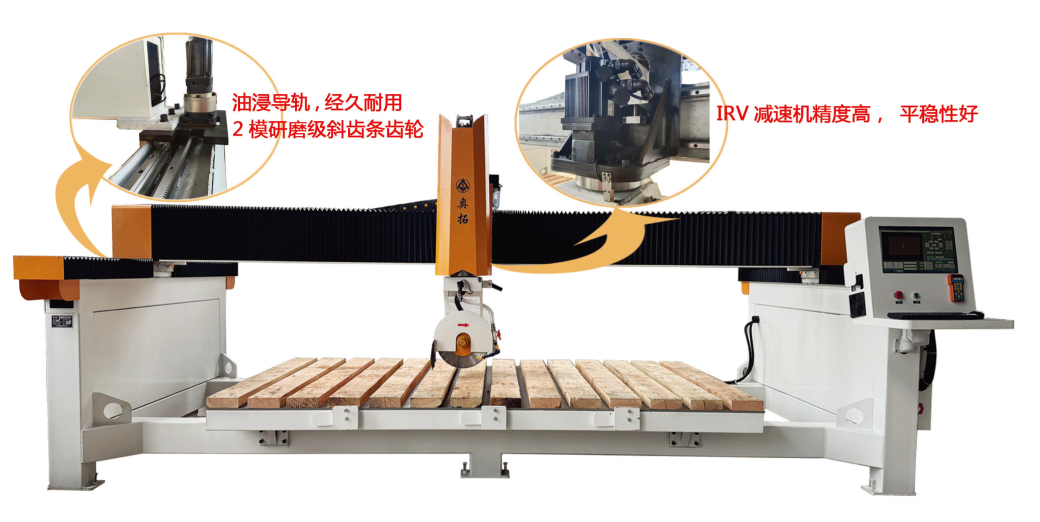

* 旋转轴采用IRV减速机，精度高平稳性好
Rotary shaft using IRV reducer, high precision and good stability
* Y向导轨油浸式润滑方式，经久耐用
Y guide rail oil immersion lubrication, durable
* 软件自主研发，操作简单好学
Software independent research and development, easy to operate
