适用范围 Application Scope
适用于大理石，花岗岩，石英石,人造石等石材挖孔、孔内磨边抛光
Suitable for marble, granite, quartz, artificial stone and other stone hole, hole edge polishing
技术参数 Technical Parameter
|

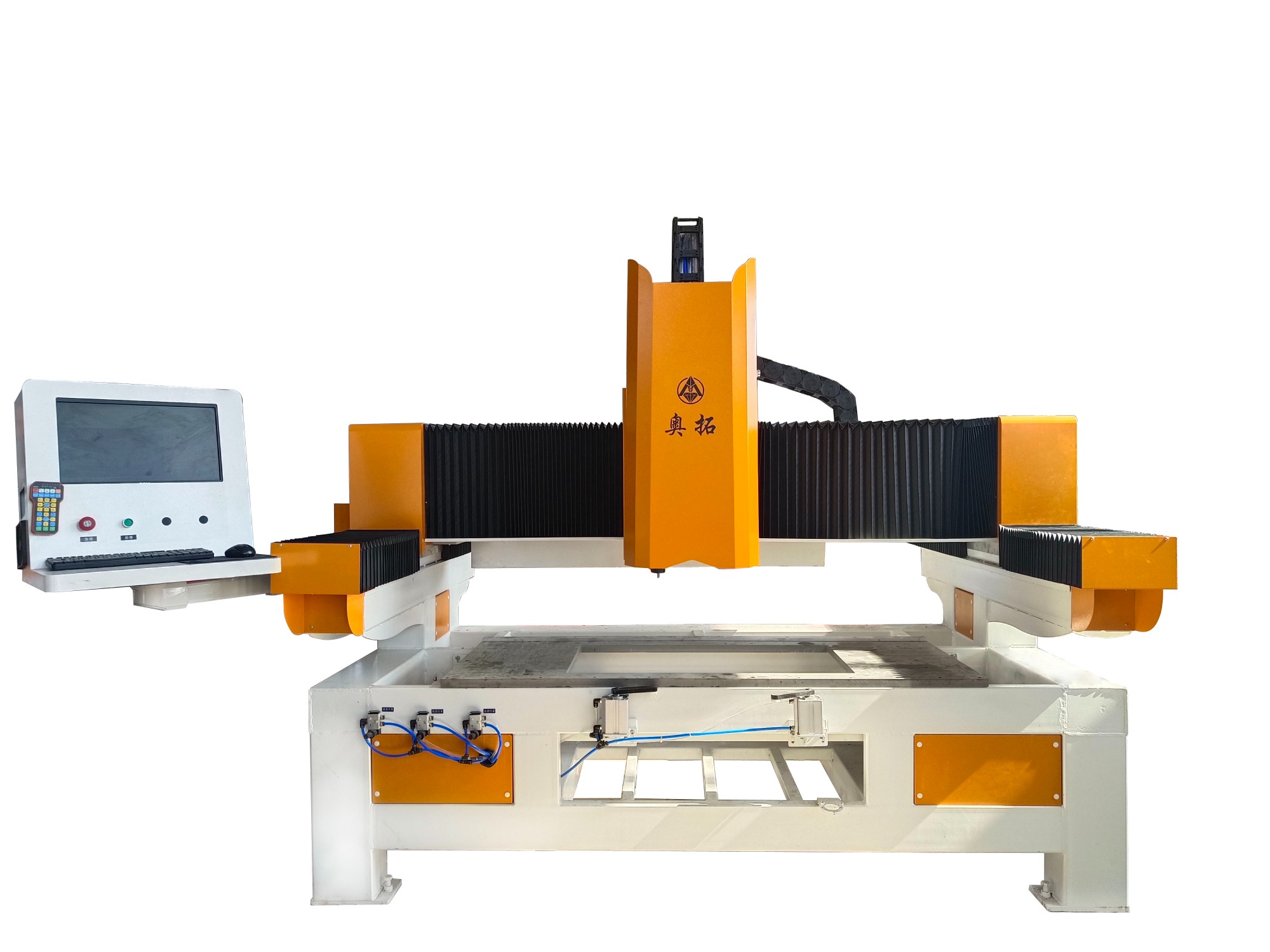

机型 Models
|
AK1765
|
|
外形尺寸Overall dimensions
|
L2800mm*W1600mm*H2300mm
|
|
盆孔加工范围
Basin hole processing range
|
不限尺寸No limit size
|
|
最大空程速度
Maximum space velocity
|
10m/min
|
|
最大加工速度
Maximum machining speed
|
3.5m/min
|
|
定制型高速（恒扭矩）电主轴
Motorized spindle
|
7.5KW水冷主轴（24000转/分钟）
7.5KW water-cooled spindle (24000 RPM)
|
|
总功率Total power
|
11kw
|
|
总重量Weight
|
1.5T
|
传动方式（齿条）
Transmission mode(rack) |
精密斜齿条（1.5模斜齿齿条齿轮）
Precision helical rack (1.5 die helical rack gear) |
|
机柜Cabinet
|
集成电柜
Integrated electric cabinet
|
设备优势 Advantages
* 板材的开孔、孔内抛光可一次完成
The drilling and grinding of the slats can be completed in one time
* 自主开发的系统软件，简单易学
The software was independently developed by us, making it simpler and more practical.
* 设备占地面积小，加工尺寸不受限制
The equipment has a small footprint and there are no restrictions on processing dimensions.
* 上下料采用滚轮设计方案，更加省工省力，高效便捷
The loading and unloading process is designed with rollers, which is more time-saving and labor-saving for the workers.

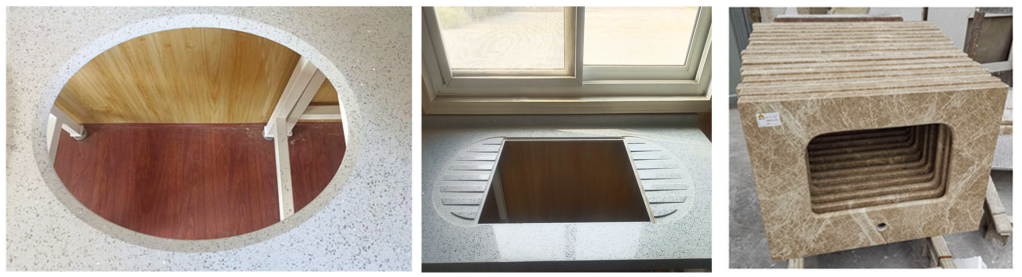

成品展示 Finished product display
加工视频链接点击此处查看
